Innovation has always been front and center at EXFO. Thanks to its automated and intelligent test applications, EXFO is constantly offering game-changing solutions. Whether it be SmartR for copper testing, iOLM for optical testing and iSAM for Ethernet testing, we are always looking for the next best thing to meet today’s network reality. Our goal is to facilitate the day-to-day operations of field technicians by allowing significantly simpler and more accurate testing to deliver quality services to subscribers.

exfo logoEXFO is a leading provider of next-generation test and service assurance solutions for wireless and wireline network operators and network equipment manufacturers in the global telecom industry. The company offers innovative solutions for the development, installation, management and maintenance of converged, IP fixed and mobile networks. EXFO has a staff of approximately 1500 people in 25 countries, supporting more than 2000 telecom customers worldwide.

Last-Mile OTDR — MaxTester 715B

Last Mile OTDR MaxTester 715B

The Handheld OTDR... Reinvented.
The MaxTester 700B series is the first tablet-inspired OTDR line that is handy, lightweight and rugged enough for any outside plant environment. With a 7-inch, outdoor-enhanced touchscreen—the most efficient handheld display in the industry—it delivers an unprecedented user experience. Its intuitive Windows-like GUI ensures a fast learning curve. Plus, its new and improved OTDR 2.0 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real-time modes.

The MaxTester 700B series is the first tablet-inspired OTDR line that is handy, lightweight and rugged enough for any outside plant environment. With a 7-inch, outdoor-enhanced touchscreen—the most efficient handheld display in the industry—it delivers an unprecedented user experience. Its intuitive Windows-like GUI ensures a fast learning curve. Plus, its new and improved OTDR 2.0 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real-time modes.

The amazing 12-hour battery life will never let a technician down, and the plug-and-play hardware options, like the VFL, power meter and USB tools, make every technician’s job easier. Most importantly, the Max-700B series is finally bringing the iOLM, an intelligent OTDR-based application, to the handheld market. This advanced software turns even the most complex trace analysis into a simple, one-touch task.

Ultimately, the MaxTester 700B series is small enough to fit in your hand and big enough to fit all your needs!

The Entry-Level Solution Designed for All Your Testing Needs
The MaxTester 715B OTDR/iOLM is optimized for the point-to-point testing and troubleshooting of FTTx architectures, and is ideal for testing short fibers (e.g., inside a CO environment or at FTTA/DAS network installations).

KEY FEATURES
  • Handy, lightweight, powerful, tablet-inspired design
  • 7-inch, outdoor-enhanced touchscreen – the biggest in the handheld industry
  • 12-hour autonomy
  • Dead zones: EDZ 1 m, ADZ 4 m
  • Dynamic range of 30/28/28 dB
  • Rugged design built for outside plant
  • iOLM-ready: intelligent and dynamic application that turns complex OTDR trace analysis into a one-touch task



MaxTester 730C PON/METRO OTDR

OPTIMIZED FOR FTTx/MDU FIBER DEPLOYMENTS AND TROUBLESHOOTING, SUITABLE FOR METRO

730c low res

The Entry-Level Solution Designed for All Your Testing Needs
The MaxTester 730C PON/METRO OTDR is optimized to test through optical splitters up to 1x128, ensuring complete end-to-end FTTH characterization. The 1625-nm or 1650-nm, out-of-band, live testing port enables the efficient troubleshooting of active networks without affecting the signal of other clients. Plus, the high dynamic range makes it suitable for metro point-to-point testing.

KEY FEATURES
  • Handy, lightweight, powerful, tablet-inspired design
  • 7-inch, outdoor-enhanced touchscreen – the biggest in the handheld industry
  • 12-hour autonomy
  • Dead zones: EDZ 0.5 m, ADZ 2.5 m
  • Dynamic range of 39/38/39 dB
  • Rugged design built for outside plant
  • iOLM-ready: intelligent and dynamic application that turns complex OTDR trace analysis into a one-touch task



 FIP-400B USB - fiber inspection probe

fip 400b mf usb 1

These intelligent and automated test tools transform fiber inspection into a faster and simplified one-step process providing accurate and consistent test results, and preventing the reporting of false-positive results.

led fip400

KEY FEATURES
Fully automated, one-step process:
› Automatic fi ber-connection detection
› Automatic image centering
› Automatic focus adjustment and optimization
› Automatic capture
› Automatic pass/fail analysis
› Automatic reporting
› On-board connector endface analysis (IEC, IPC or custom standards) including MPO/MTP analysis.
› Pass/fail LED indicator for immediate diagnosis of connector health
› Optimal digital image quality with three levels of magnification


LFD-300B/TG-300B FiberFinder - live fiber identifier/tone generator

lfd 300b tg 300b 1

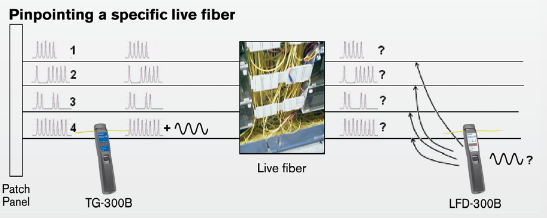

 Enables technicians to identify a specific live fiber without having to disconnect it and, above all, without having to guess. The end results: no more network outages caused be inadequate fiber detection or identification, and a minimized need to access the network, helping prevent errors.

lfd300

Key Features
› Pinpoints a specific live fiber using EXFO’s FiberFinder™ functionality
› Induces minimal loss ≤ 1 dB
› Locates a particular dark fi ber using tone recognition (270 Hz, 1 kHz, 2 kHz)
› Three times faster test cycle (<6 s)
